Self-service Kiosk with Shelves
European manufacturing
20 years of experience
Fast delivery

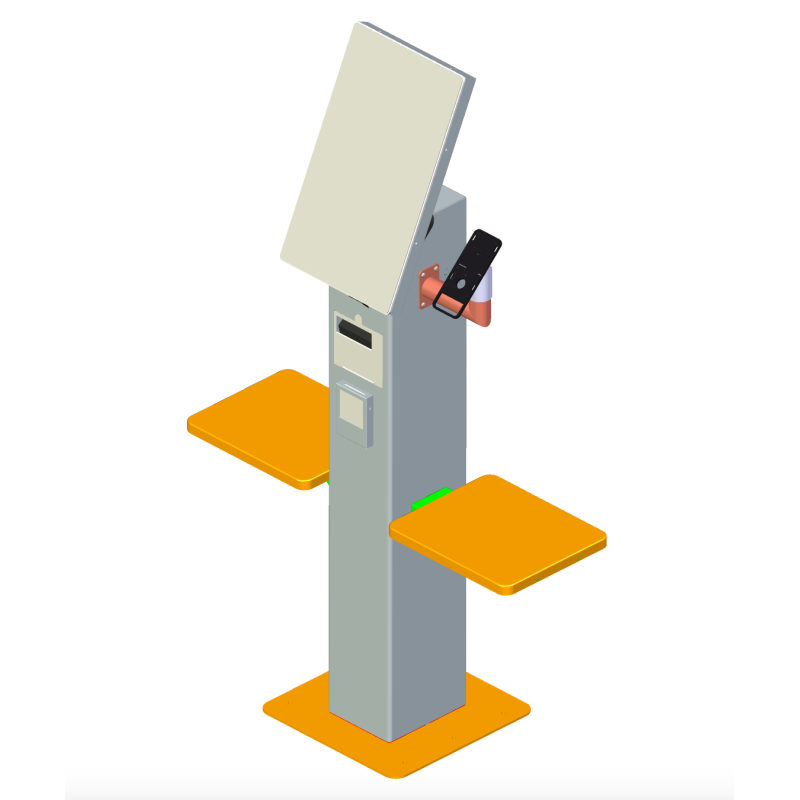

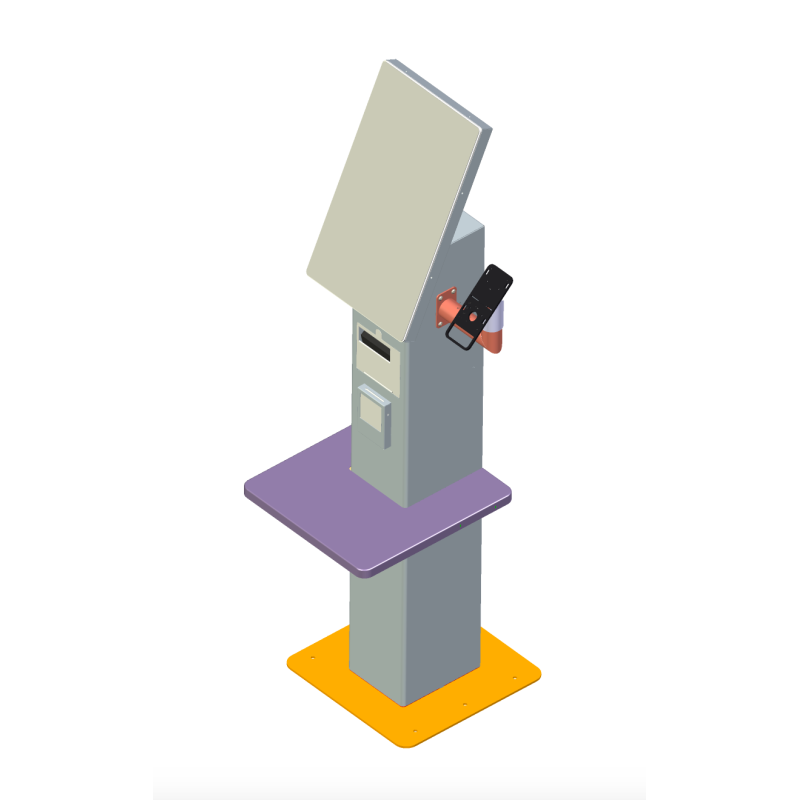

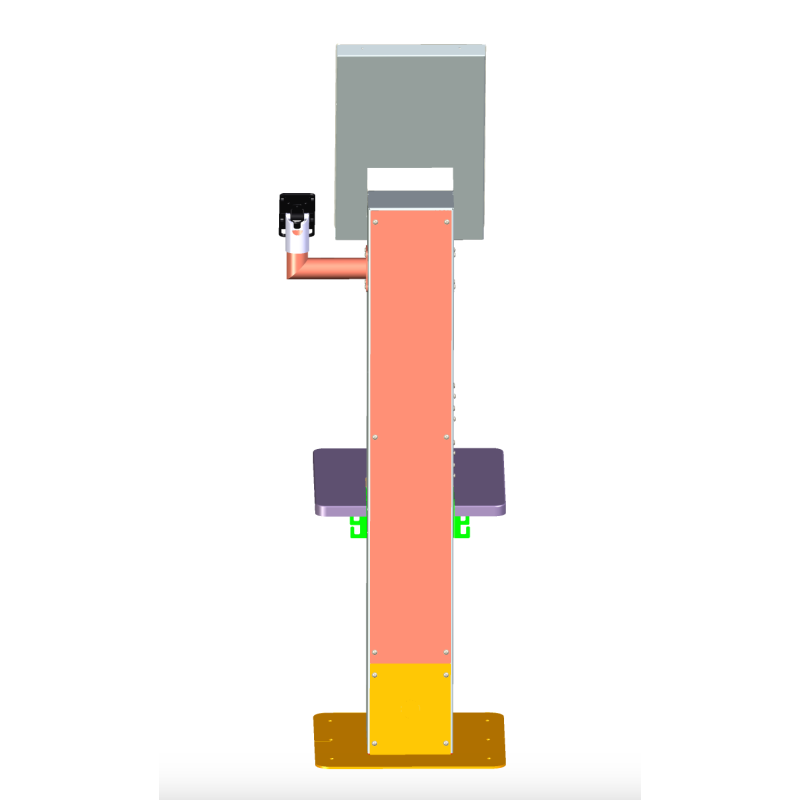

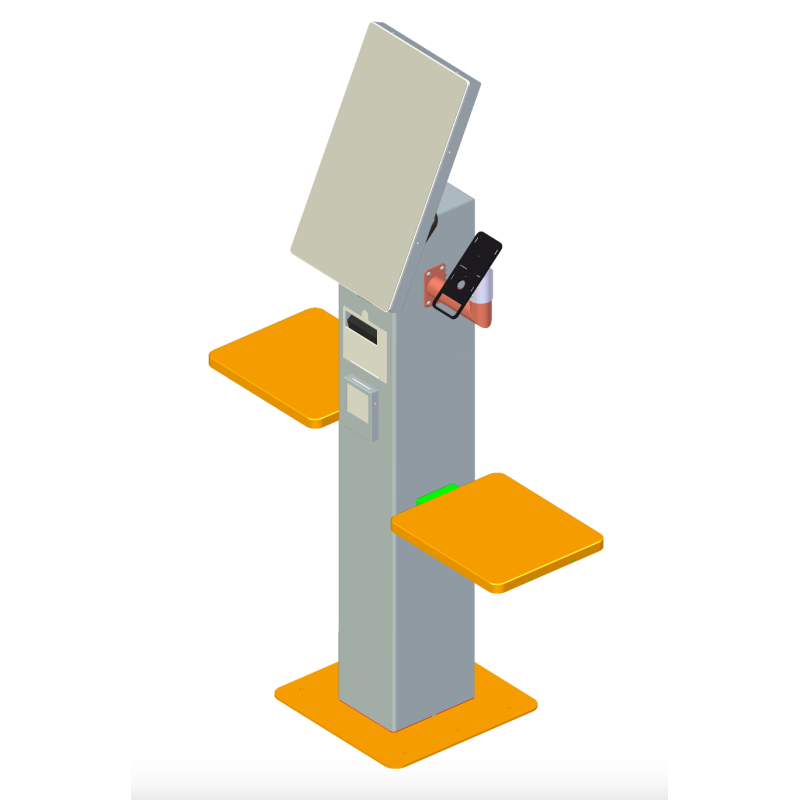

The Self-Service Kiosk with Shelves is perfect for commerce and retail such as supermarkets, convenience stores, food and non-food stores. It is made of a firm and rigid steel structure, a monitor or screen, a POS bracket, printer, scanner (in the trunk or handheld), the shelves at different heights (customer's choice) and the base.
Monitor:
Structure:
Shelves:
Printer, scanner and payment terminal bracket:
Base:
Weights:
- VESA 100 mount for touch screen monitor.
- Monitor sizes: from 15" to 19".
Structure:
- 124.7cm height.
- The wiring of the devices pass through the inside of the trunk, and are held in place by packing rings.

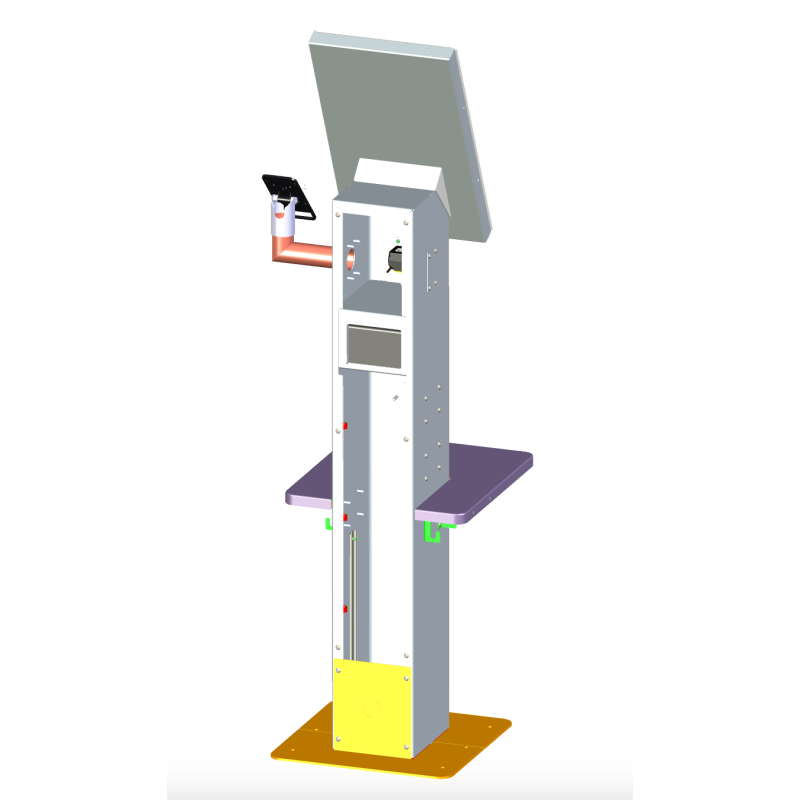

- Rear cover allows access to cables and internal devices.
Shelves:
- 360º Shelf: 159.5mm (front) and 104.5mm (side)
- Double shelves (one on each side): the right shelf is fixed at 550mm height from the base, and the left shelf can be fixed on the following heights: 800mm, 670mm or 550mm.
- 302mm length.
- On shelves bottom, hooks are fixed to hang shopping bags.
Printer, scanner and payment terminal bracket:
- Protected inside the trunk.
- Access through a door with security key.
- Printer: EPSON TN-T70II.
- Scanner: DATALÓGIC GFS4400 2D USB.
- Handheld scanner mount on the side of the trunk.
- 90º payment terminal bracket and universal or specific tray for POS.
Base:
- Measurements of the base: 400mm x 420mm.
- Dimensions of the hole to connect to the plug: 100mm x 120mm.
Weights:
- Monitor case: 3kg.
- Trunk: 17kg.
- Shelf: 4kg.
- Base: 6kg.
