Self-ordering and Self-payment Kiosk

Name: Self-ordering and Self-payment Kiosk
Brand: Countermatic
SKU: 464

European manufacturing

20 years of experience

Fast delivery

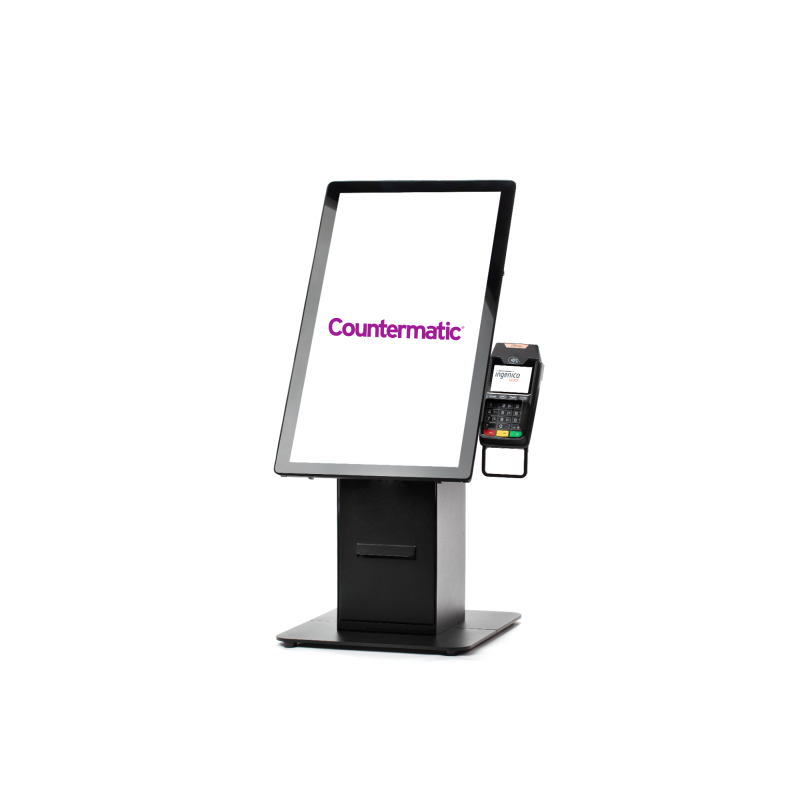

The Self-Ordering and Self-Payment Kiosk is used for ordering and pay for them by the customer itself in different points of sale in multiple sectors. The kiosk saves time, reduces overhead costs, simplifies the shopping process and improves the customer experience.

Trunk:

Dimensions: Height 53.43cm x Length 160cm x Width 160cm.
Monitor inclination: 30º.
Diameter for handheld EFTPOS/scanner hole: 5.2 cm.

Monitor Stand:

VESA 100 Mount ideal for All in One monitors.
Monitor: customer's choice or ELO ESY 15i3 TOUCHPRO – W10 2.0.

Scanner and Printer Mount:

Scanner: Newland NLS-FM3080.
Printers: Epson TMT 30 or SAM 4S.
Built-in scanner mount.
If needed: Arm attached to side panel to hold handheld scanner.
The printer has a front paper exit and is protected inside.

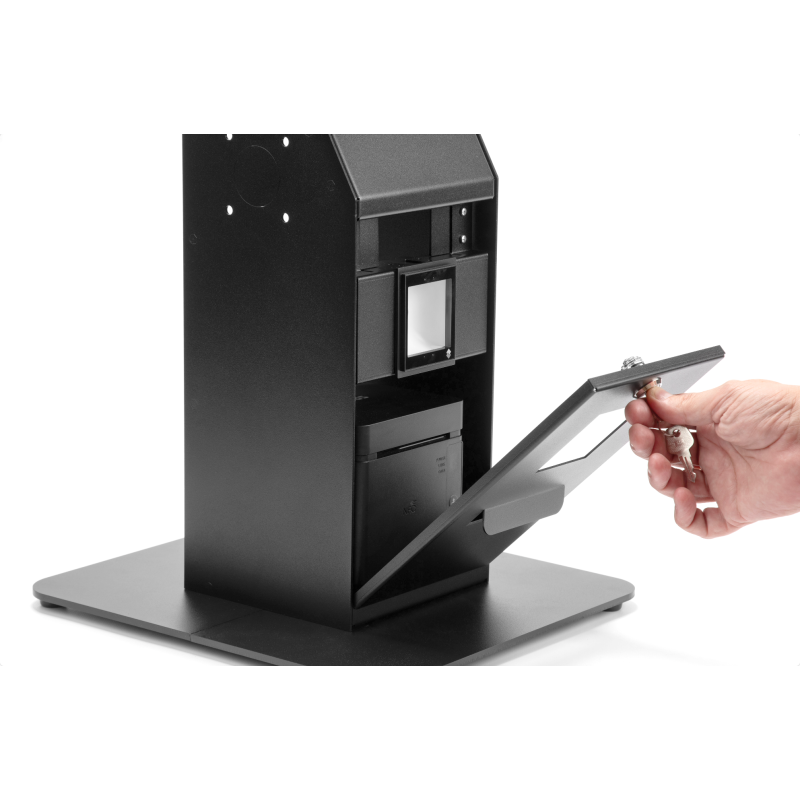

Access to scanner, printer and printing paper rolls through lockable kiosk front door.

Payment Terminal Stand:

90º payment terminal pole.
Pole diameter: 4.5 cm.
A universal payment terminal or a a bespoke backplate can be used.
Different arm lengths for payment terminals.
Arm attached to side panel.

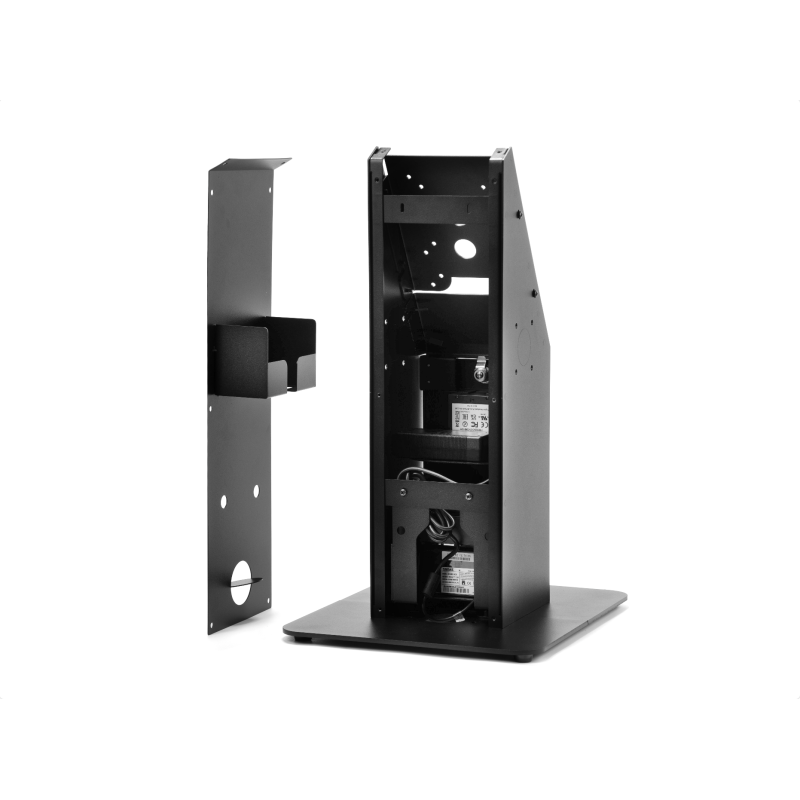

Back cover:

Dimensions: 14.95 x 53.43 cm.
Removable back cover for easy access for cable management of different peripherals.
Inside the trunk there is enough space to accommodate a mini PC and power supplies.
Printing paper mount fixed to the back cover.
Second cable exit hole at the bottom of the rear cover.
Rear cover fixed to the kiosk with screws.

Base:
